| Gauge Type | Range |
|---|---|
| Thread Plug Gauge | 1 mm to 620 mm |
| Thread Ring Gauge | 1 mm to 600 mm |
| Taper Thread Plug Gauge | 1/16 Inch to 20 Inch ( Taper 1:16 to 1:4) |
| Taper Thread Ring Gauge | 1/16 Inch to 20 Inch ( Taper 1:16 to 1:4) |

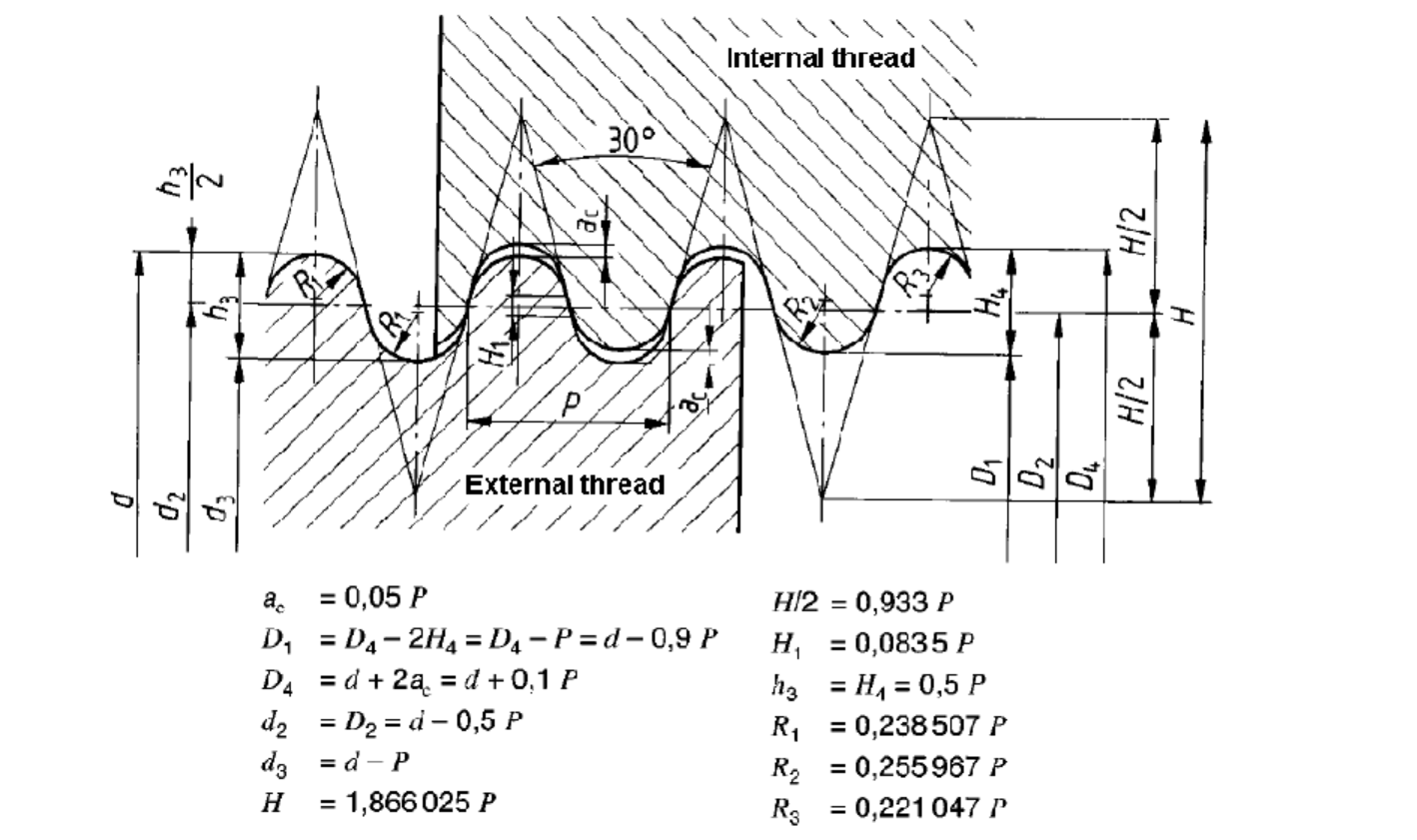

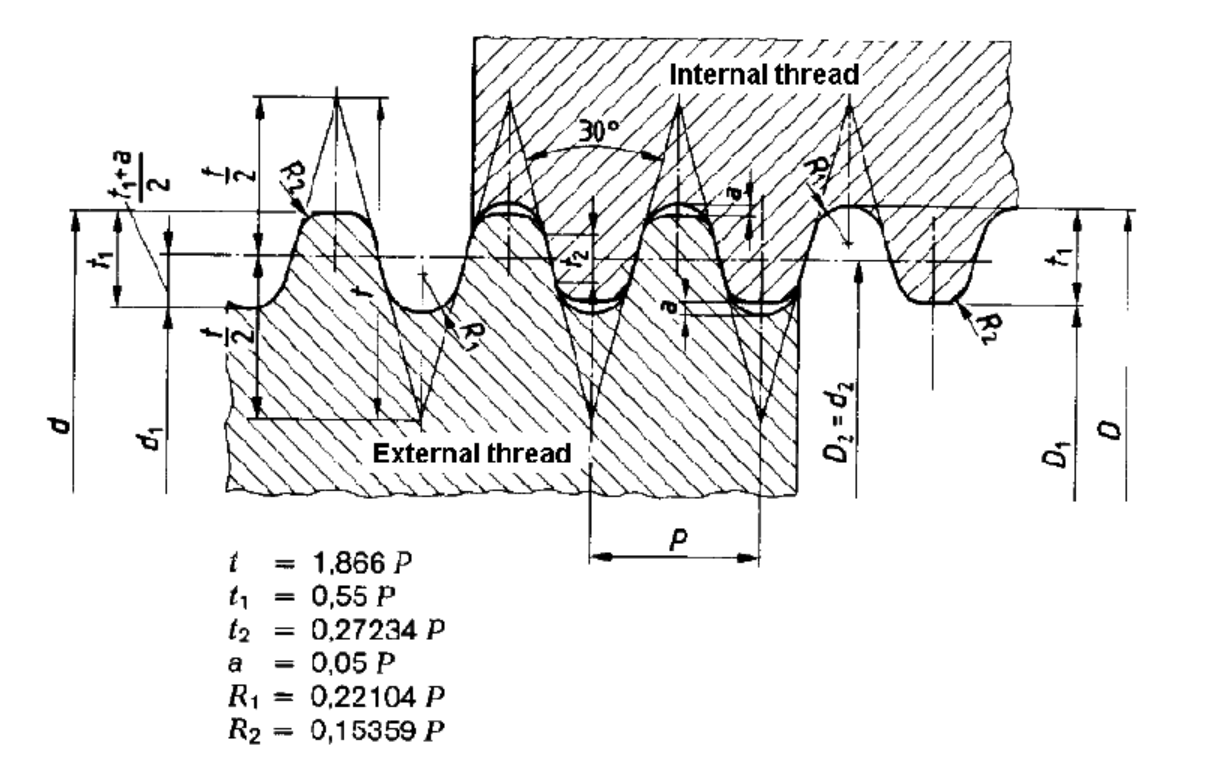

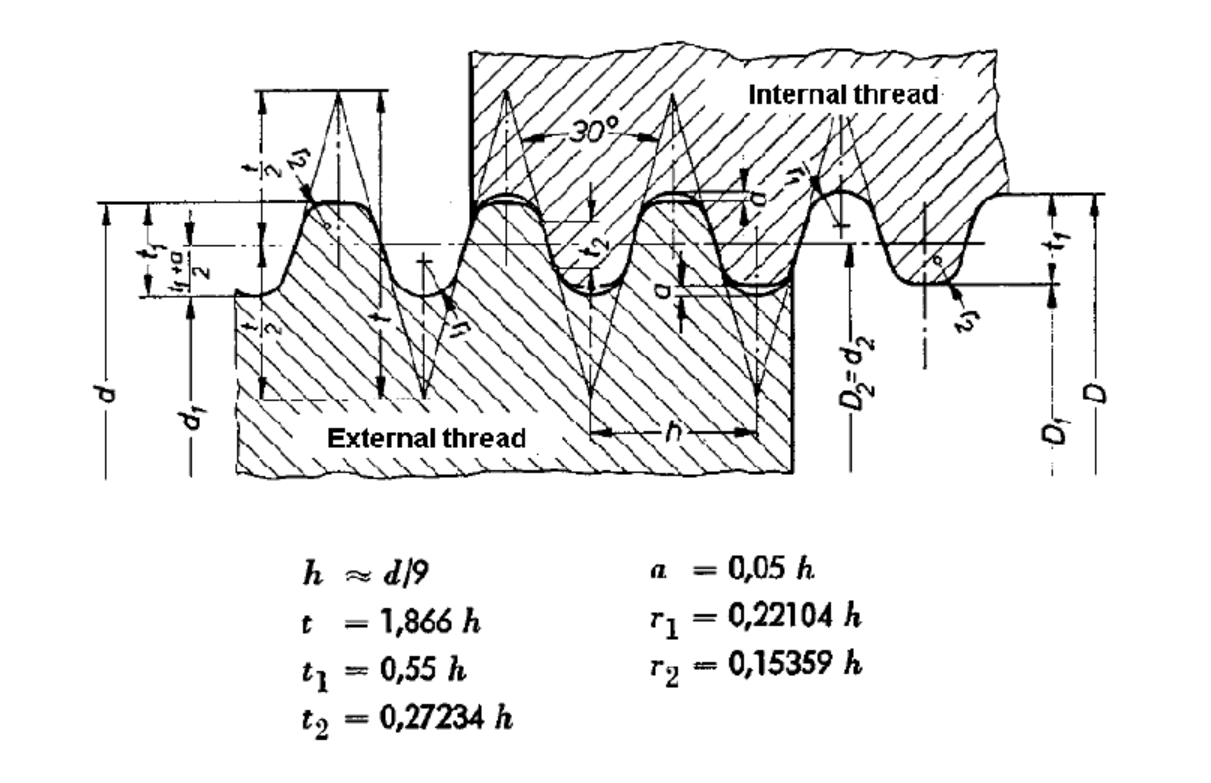

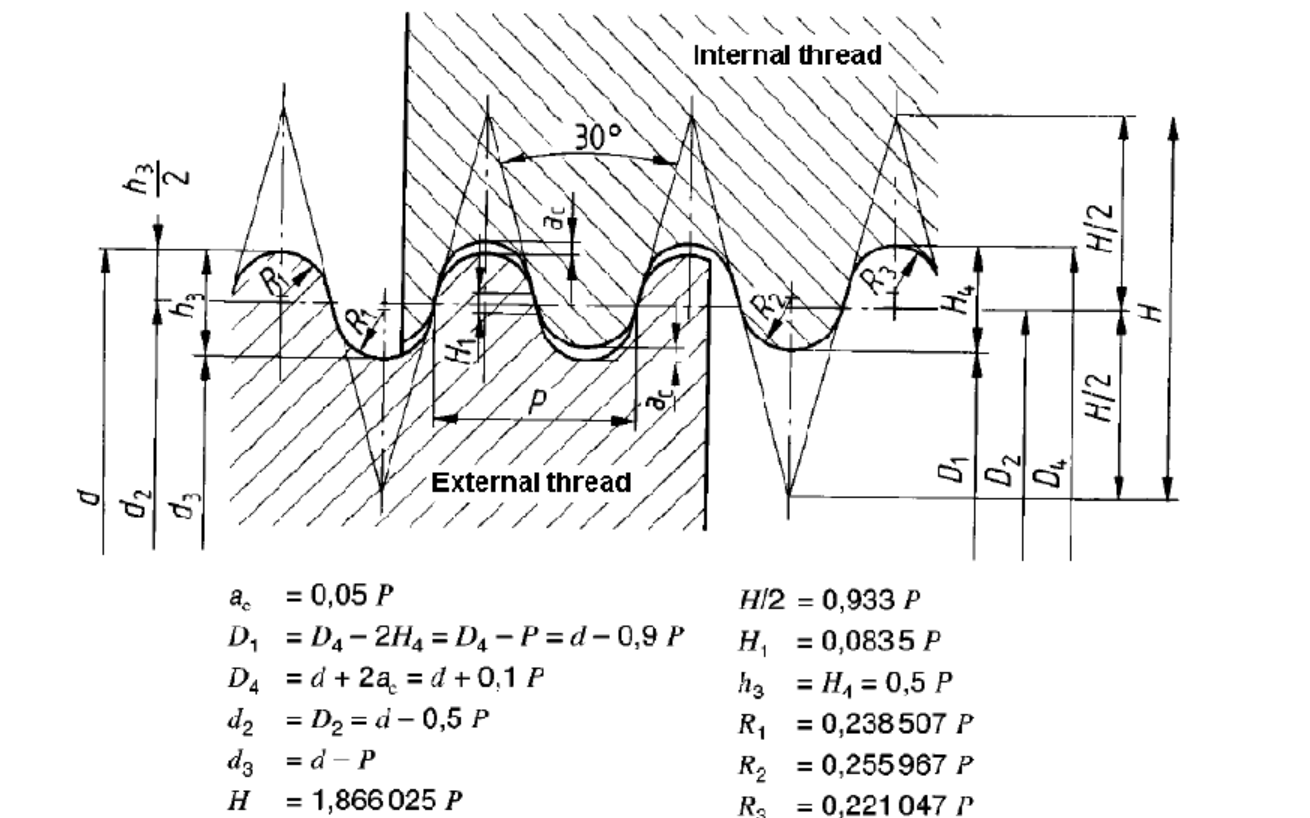

Knuckle Thread Gauges
DIN 405:1997
DIN 405-3:1997
DIN 405-3:1997
DIN 405-3:1997
